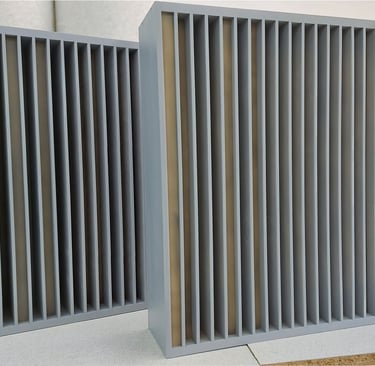

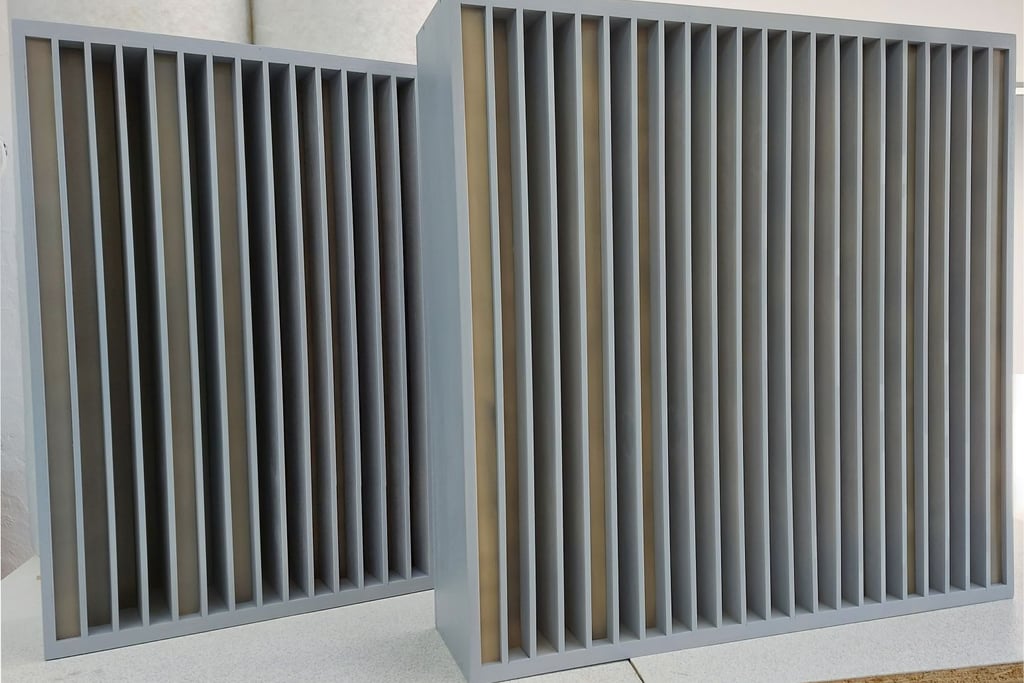

QRD Acoustic Diffusor

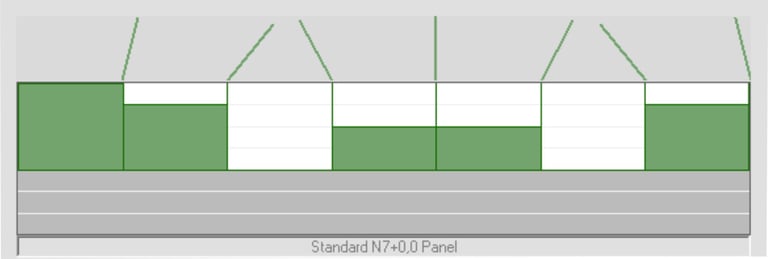

Diffusor N7+0,0 Panel: h 713 x l 713 x d 190 mm
Number of wells: 7 Design frequency 547 Hz
Deepest well in mm: 180
Scatter 273 Hz Diffuse 547 Hz HF cutoff 1791 Hz
True diffusion frequencies: 547, 1094, 1641 Hz
Minimum distance to seating position 1.88 m
Weight 23 kg

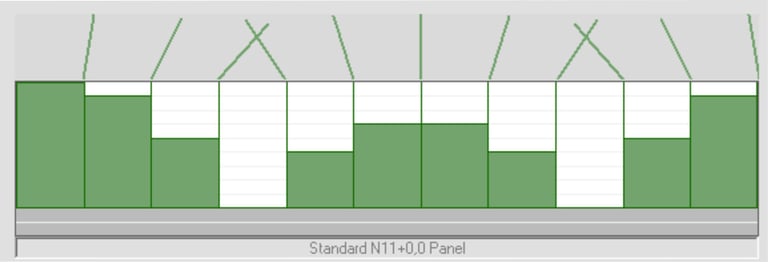

Diffusor N11+0,0 Panel h 713 x l 713 x d 190 mm
Number of wells: 11, Design frequency 782 Hz
Deepest well in mm: 180
Scatter 391 Hz Diffuse 782 Hz HF cutoff 2915 Hz
True diffusion frequencies: 782, 1564, 2346 Hz
Minimum distance to seating position 1.31 m
Weight 22,5 kg

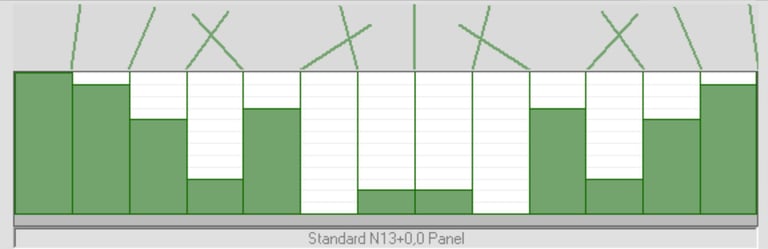

Diffusor N13+0,0 Panel h 713 x l 713 x d 190 mm
Number of wells: 13, Design frequency 883 Hz
Deepest well in mm: 180
Scatter 441 Hz Diffuse 883 Hz HF cutoff 3510 Hz
True diffusion freq: 883, 1766, 2649 Hz
Minimum distance to seating position 1.16 m
Weight 21 kg

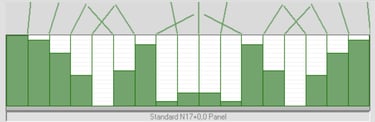

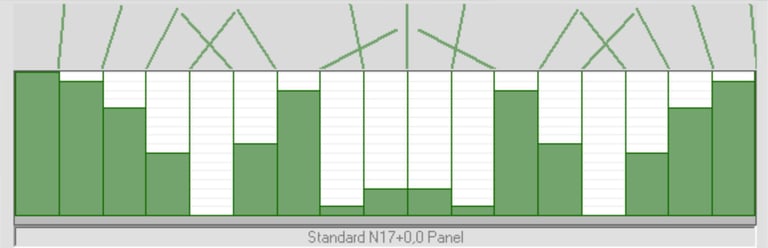

QRD 1D Diffusor N17+0,0 Panel h 713 x l 713 x d 190 mm
Number of wells: 17, Design frequency 901 Hz
Deepest well in mm: 180
Scatter 450 Hz Diffuse 901 Hz HF cutoff 4777 Hz
True diffusion freq: 901 1802 2703 3604 4505 Hz
Minimum distance to seating position 1.14 m
Weight 24 kg

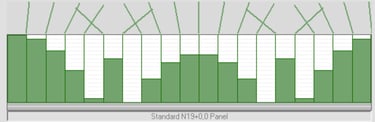

QRD 1D Diffusor N19+0,0 Panel h 1178 x l 589 x d 190 mm
Number of wells: 19, Design frequency 856 Hz
Deepest well in mm: 180
Scatter 428 Hz Diffuse 856 Hz HF cutoff 6880 Hz
True diffusion frequencies: 856 1712 2568 3424 4280 5136 5992 6848 Hz
Minimum distance to seating position 1.2m
Weight 25 kg

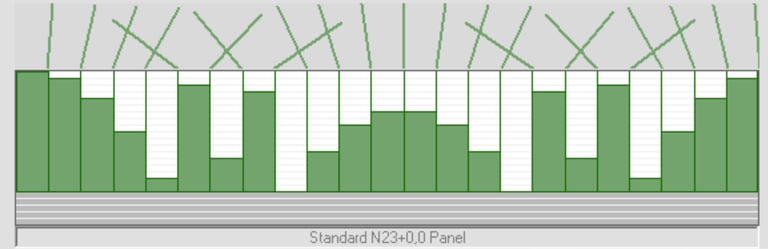

Number of wells: 23, Design frequency 748 Hz
Deepest well in mm: 180
Scatter 374 Hz Diffuse 748 Hz HF cutoff 6880 Hz
True diffusion frequencies: 748 1496 2244 2992 3740 4488 5236 5984 6732 Hz
Minimum distance to seating position 1.37 m
Weight 23,4 kg
QRD 1D Diffusor N23+0,0 Panel h 713 x l 713 x d 190 mm
SST is open to create custom Diffusor for you according to your personal data. Choose between single color or multiple colors applied to the diffusor
